Pico GF Series

Semi-automatic tray sealing machine with m.a.p option

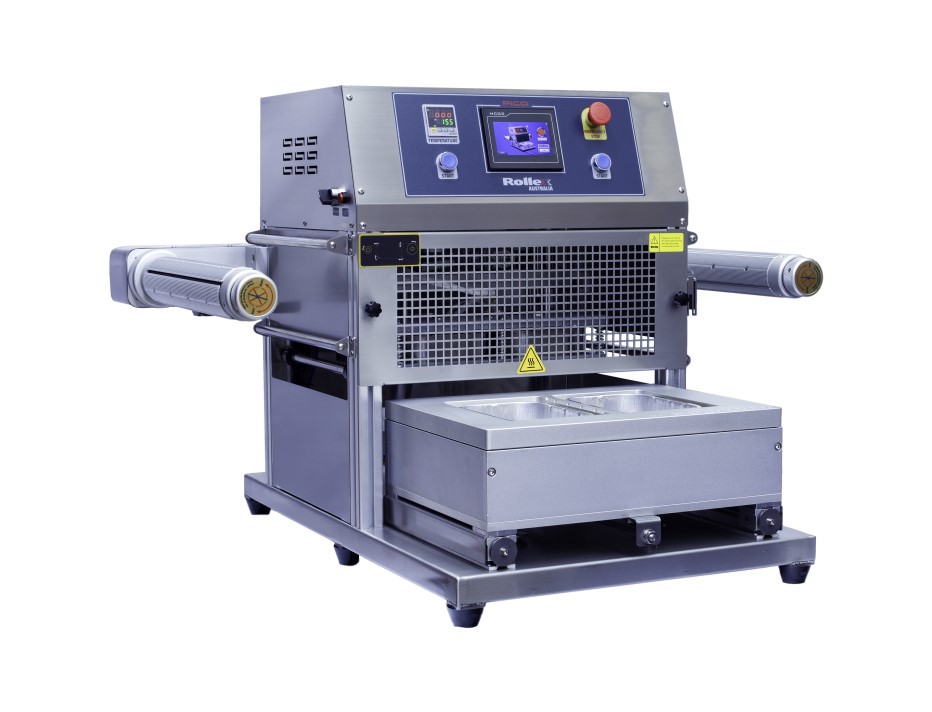

pico-gf-series-front

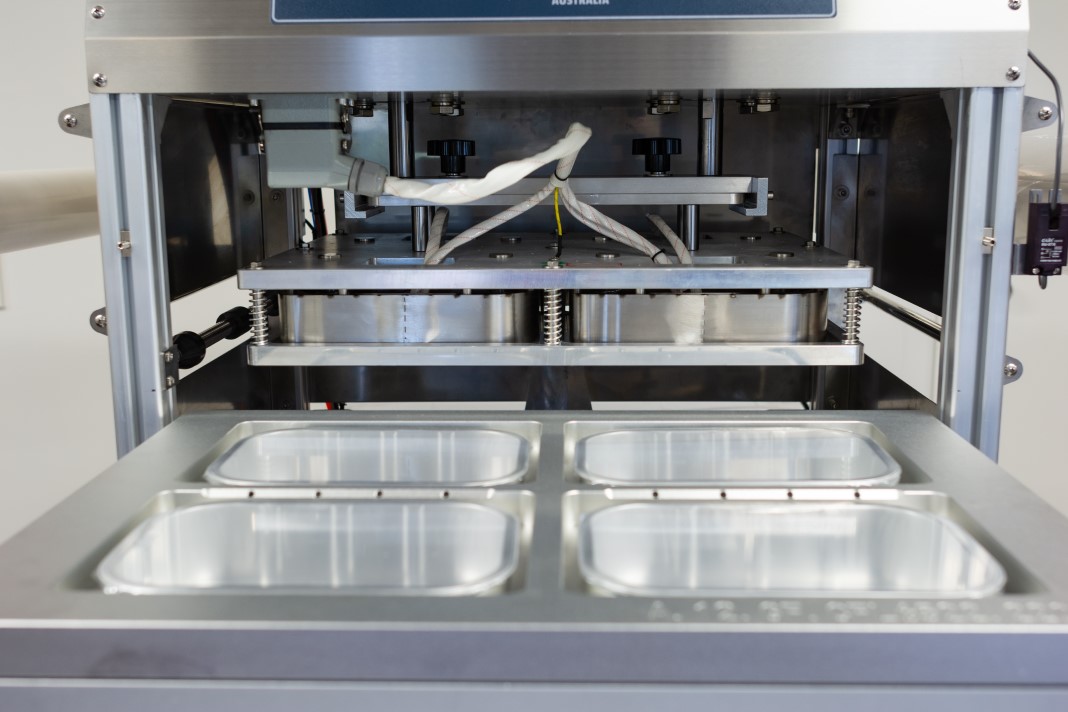

pico-gf-series-die-set

Pico GF Series is a semi-automatic tray sealing machine with customised profile cut die-set and option for m.a.p (gas flushing) in a very compact size. Ideal for ready meals and fresh produce.

OVERVIEW

Main characteristics

  • Compact size modified atmosphere packaging (m.a.p).
  • Pneumatic driven sealing cycle.
  • Automatic sealing drawers.
  • Automatic tray lift.
  • Programmable control system.
  • Touch screen control panel.
  • 304 stainless steel construction.
  • Customised die-set with profile cut.
  • Changeable die-set.

Pico 260 GF

Maximum tray sizes:

310mm (L) x 200mm (W) x 60mm (H)

pico-260-gf-die-set-dimensions

Maximum film reel width:

260mm

Maximum film reel diameter:

200mm

Cycles per minute:

5-6 seal only, 2-3 Gas flush

Gas displacement rate:

>=99%

Machine dimensions:

950mm (L) x 780mm (W) x 660mm (H)

Machine base dimensions:

746mm (L) x 486mm (W)

Machine weight:

65kg

Power:

240v AC

Pico 370 GF

Maximum tray sizes:

310mm (L) x 430mm (W) x 60mm (H)

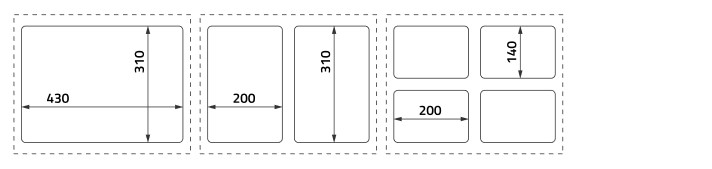

pico-370-gf-die-set-dimensions

Maximum film reel width:

370mm

Maximum film reel diameter:

200mm

Cycles per minute:

5-6 seal only, 2-3 Gas flush

Gas displacement rate:

>=99%

Machine dimensions:

1,020mm (L) x 950mm (W) x 660mm (H)

Machine base dimensions:

936mm (L) x 586mm (W)

Machine weight:

100kg

Power:

240v AC

Pico 430 GF

Maximum tray sizes:

370mm (L) x 550mm (W) x 110mm (H)

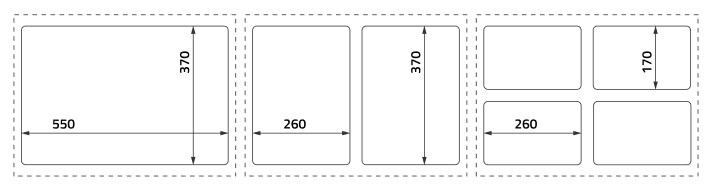

pico-430-gf-die-set-dimensions

Maximum film reel width:

430mm

Maximum film reel diameter:

200mm

Cycles per minute:

5-6 seal only, 2-3 Gas flush

Gas displacement rate:

>=99%

Machine dimensions:

1,100mm (L) x 1,130mm (W) x 740mm (H)

Machine base dimensions:

1,036mm (L) x 706mm (W)

Machine weight:

130kg

Power:

240v AC

Customised die-set with profile cut

Cabinet on wheels
